Antibody Check® Product Demonstration

  • Welcome to the

    Antibody Check

    Demonstration
  • This demonstration will automatically advance. You may also use the buttons below to advance, go back, and pause the demonstration.

    To return to the website, use your browser's back arrow.

    This demo is an Ortho® panel; Immucor®, Bio-Rad®, and Medion® will follow the same procedures.

  • To open Antibody Check®
    On the list of folders and files on your computer, double click on the current file.

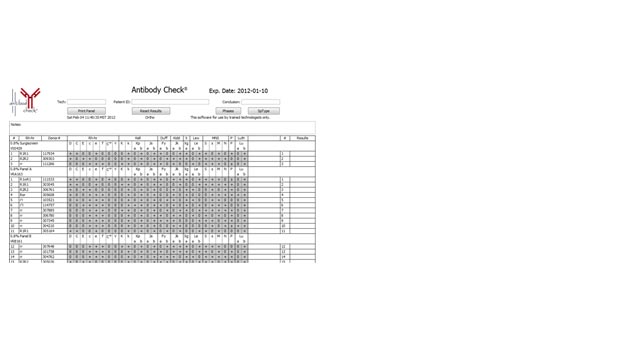

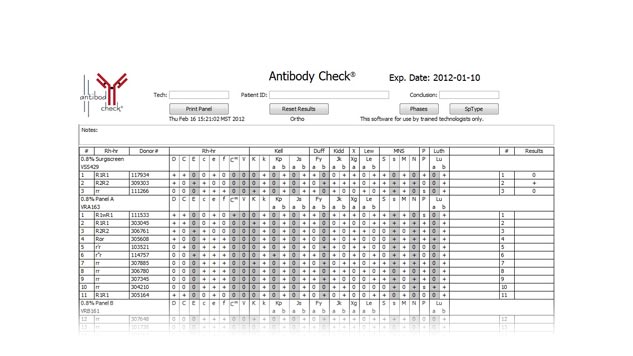

  • See an electronic version of the panels you already receive.

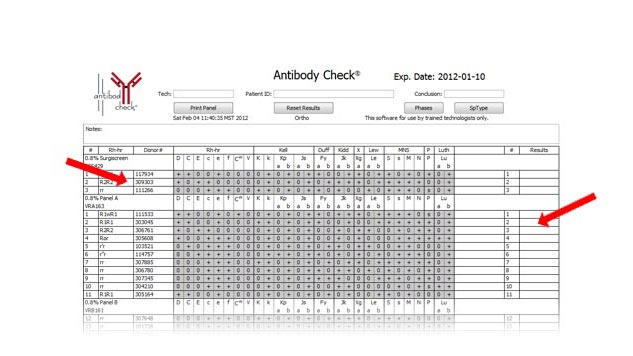

  • Donor numbers on the left...
    Enter results on the right!

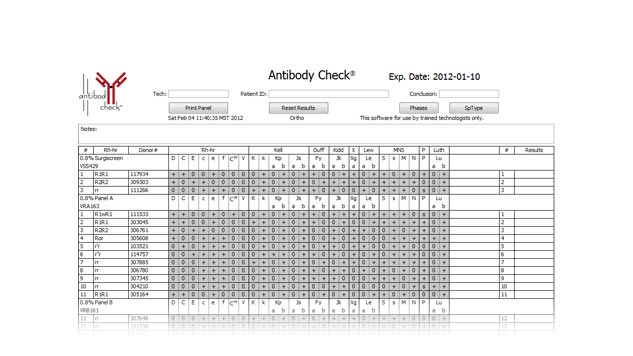

  • The panel begins with a gray background for the antigen data...



  • The panel begins with a gray background for the antigen data...



    ...until you enter results

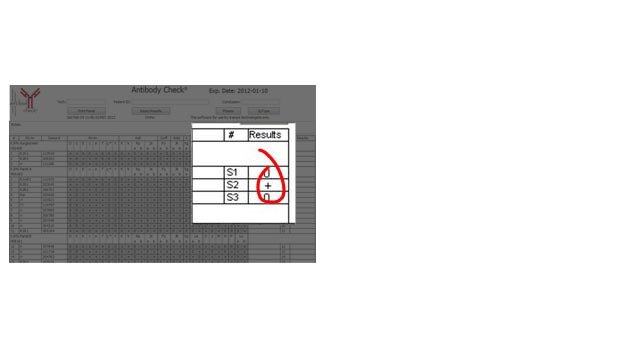

  • Click to Enter Results

    - Once for "+"
    - Twice for "0"

    Antibodies ruled out will change to white.

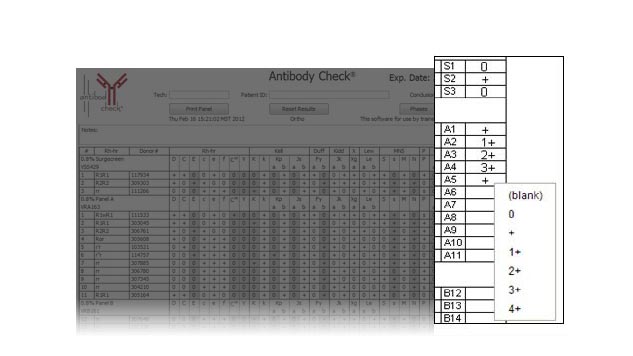

  • Right click to enter graded reactions

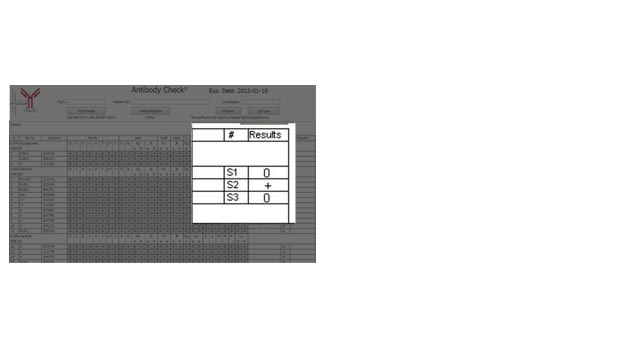

  • Here are sample results in the Screen Cells and Panel A.
    Antibodies ruled out change to white.

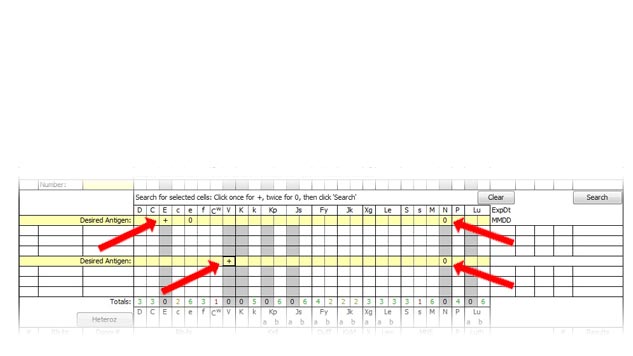

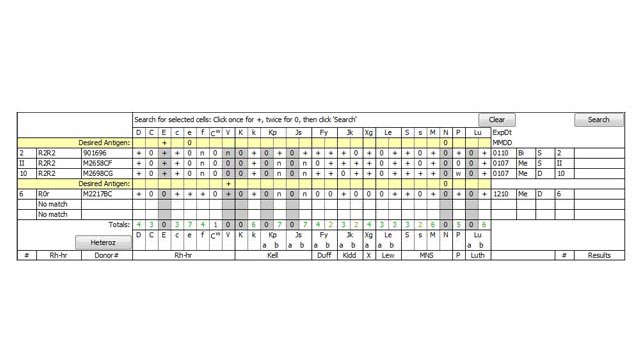

  • SEARCH FOR SELECTED CELLS

    Click to enter Desired Antigens

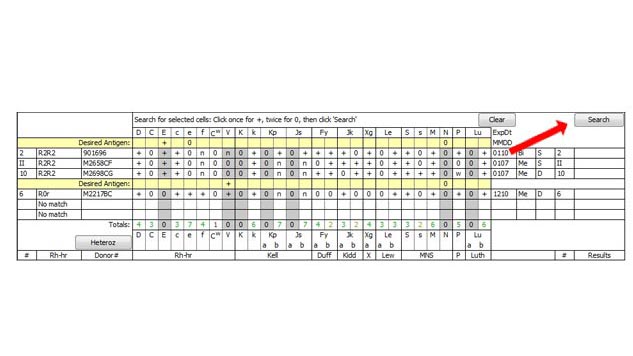

  • Click Search...

  • ...shows the expiration date, manufacturer, panel type, and cell number of the selected cells

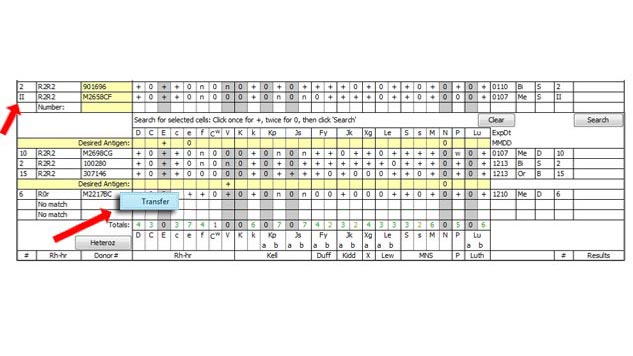

  • Right-click to transfer cells or "drag and drop"

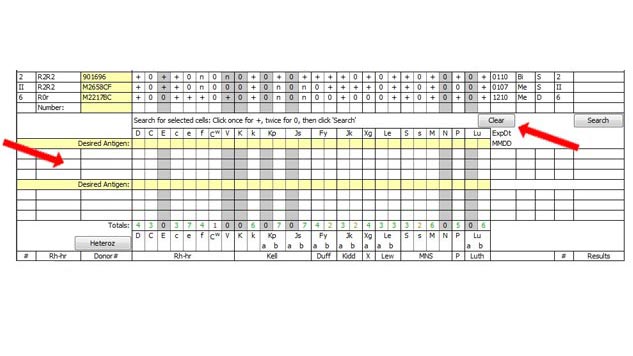

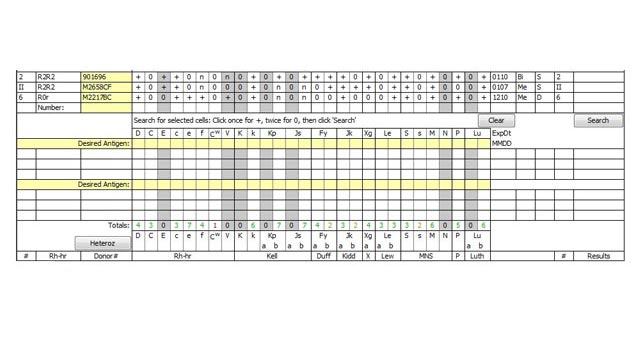

  • To change search criteria, use the Clear
    button to remove the antigens.

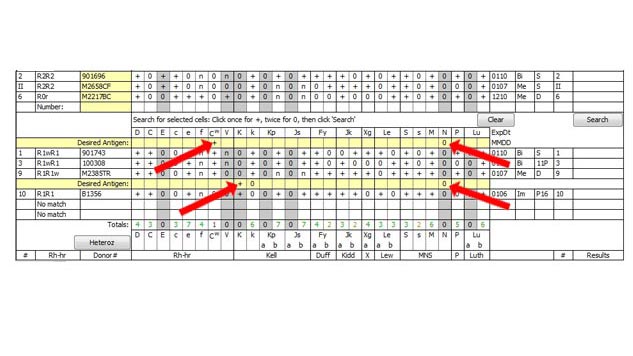

  • Change search criteria and click Search again

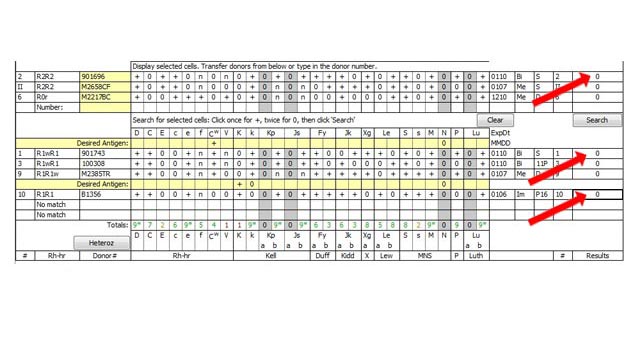

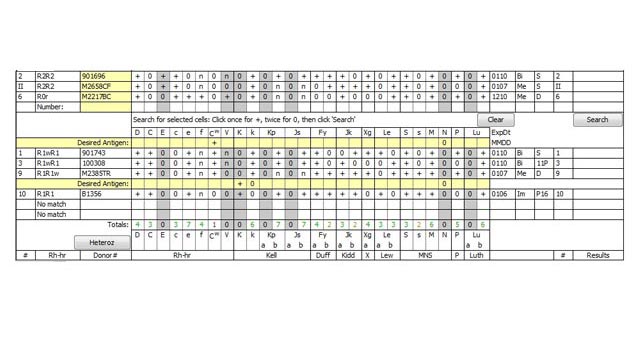

  • Enter results on the selected cells

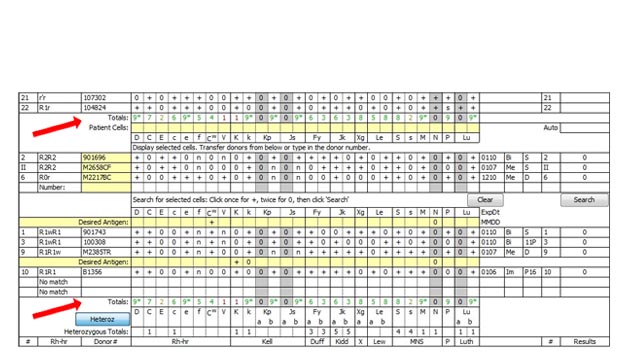

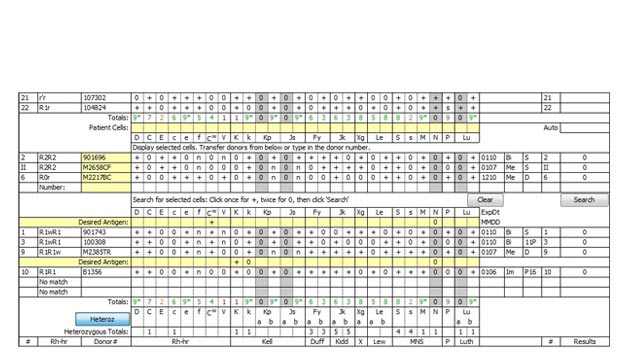

  • Antibodies are ruled out based on panel and selected cell results.
    Both Totals rows show the number of times an antibody is ruled out.

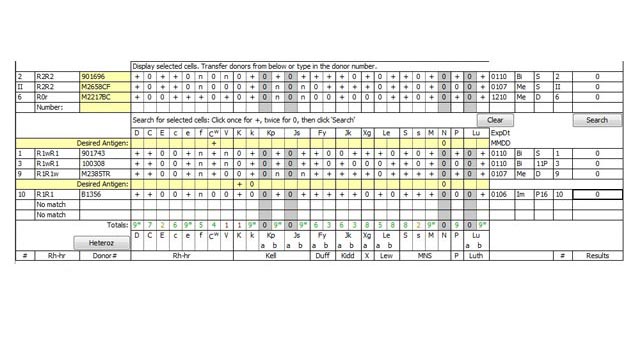

  • Repeat Search and Transfer as needed.
    Each transfer adds a blank line ready for the next selected cell.

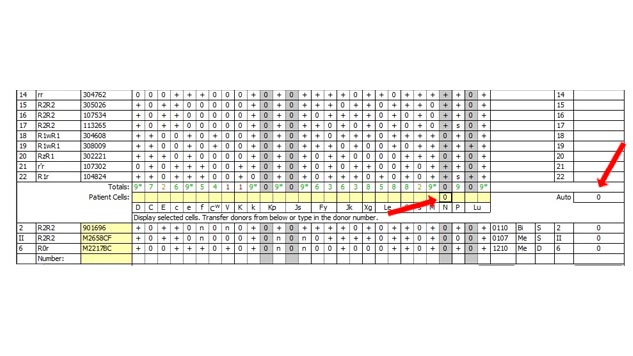

  • Perform Patient antigen typing and Auto Control if needed.
    Result these on the Patient Cell/Auto Control line.

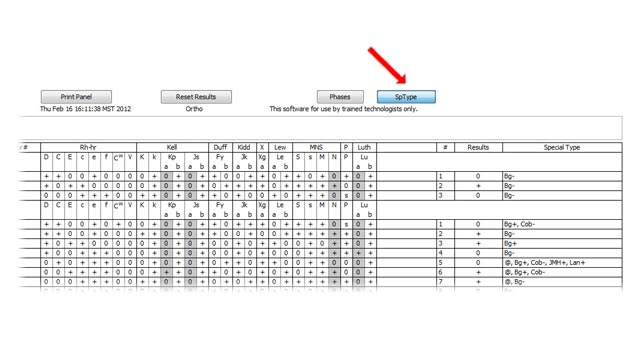

  • Show Special Type information if desired

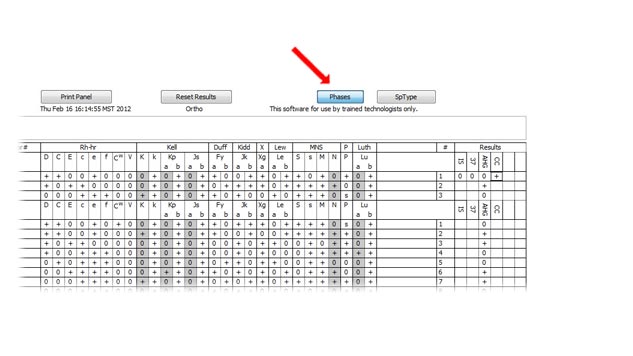

  • Show Phases if desired

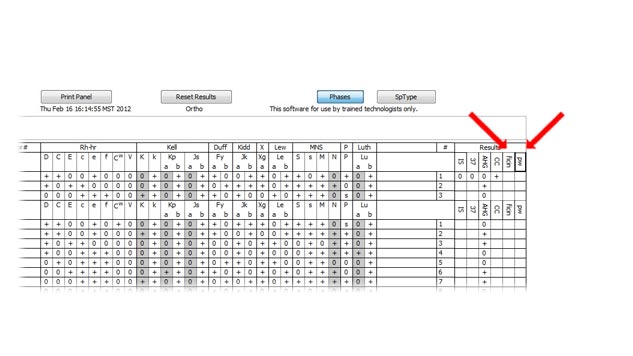

  • Right two Phase columns can be labeled as desired

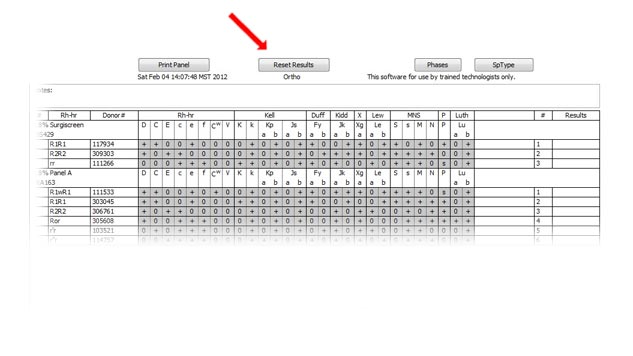

  • Then click Reset Results and begin the next patient
  • Thank you for taking the time to view our demo.

    For more information about Antibody Check®, please contact us at customerservice@antibodycheck.com
